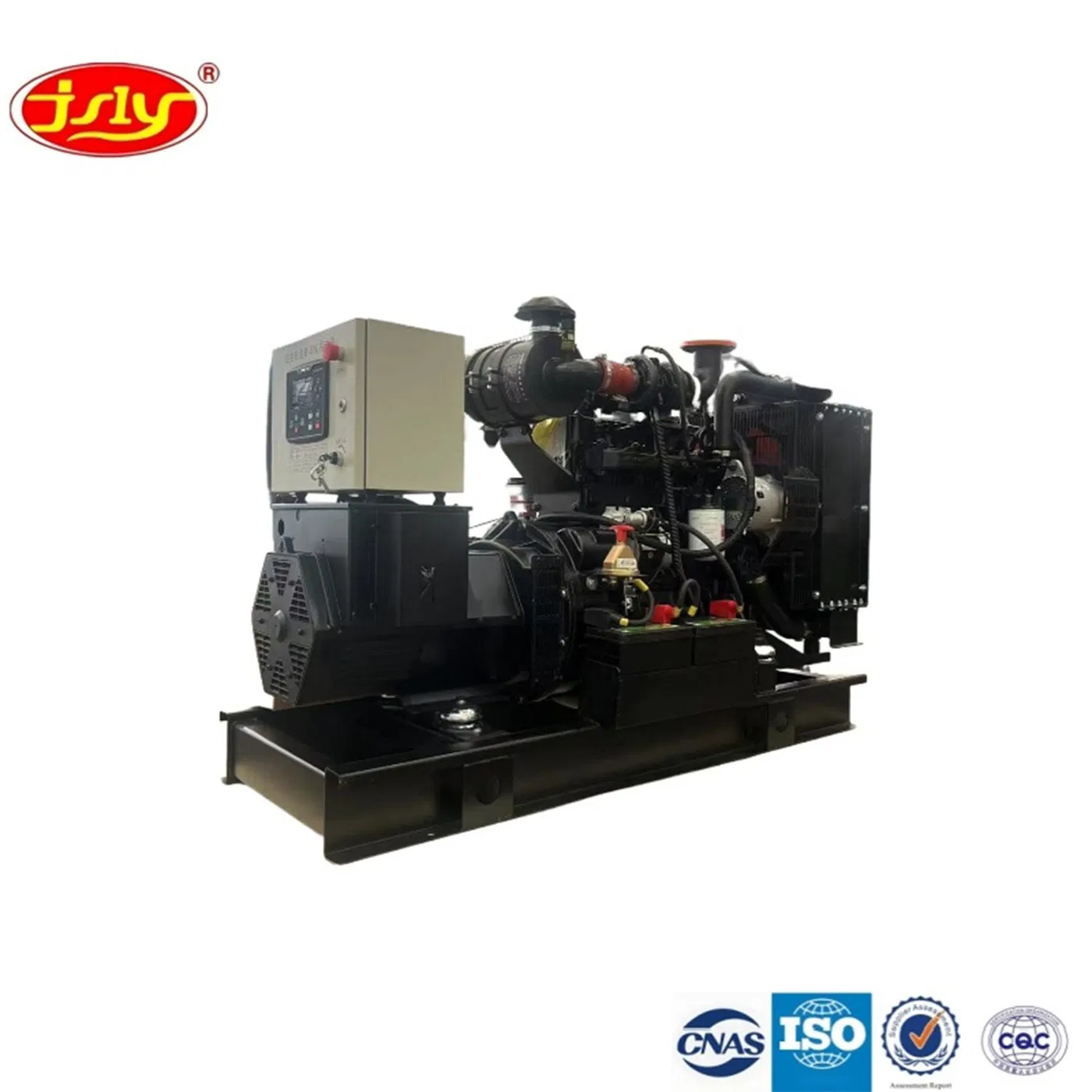

مولد ديزل موثوق به مع 50Hz/60Hz, 1500rpm/1800rpm, 30kw/37.5kVA, يستخدم في إمدادات الطاقة الطارئة والطاقة الاحتياطية

هل مازلت في حيرة من أمرك؟ احصل على عينات بقيمة $ !
نموذج للطلب

وصف المنتج

ملخص مقدمة عن المنتج المنتج الرئيسي ملف تعريف الشركة ميزة الشركة شهادة معرض

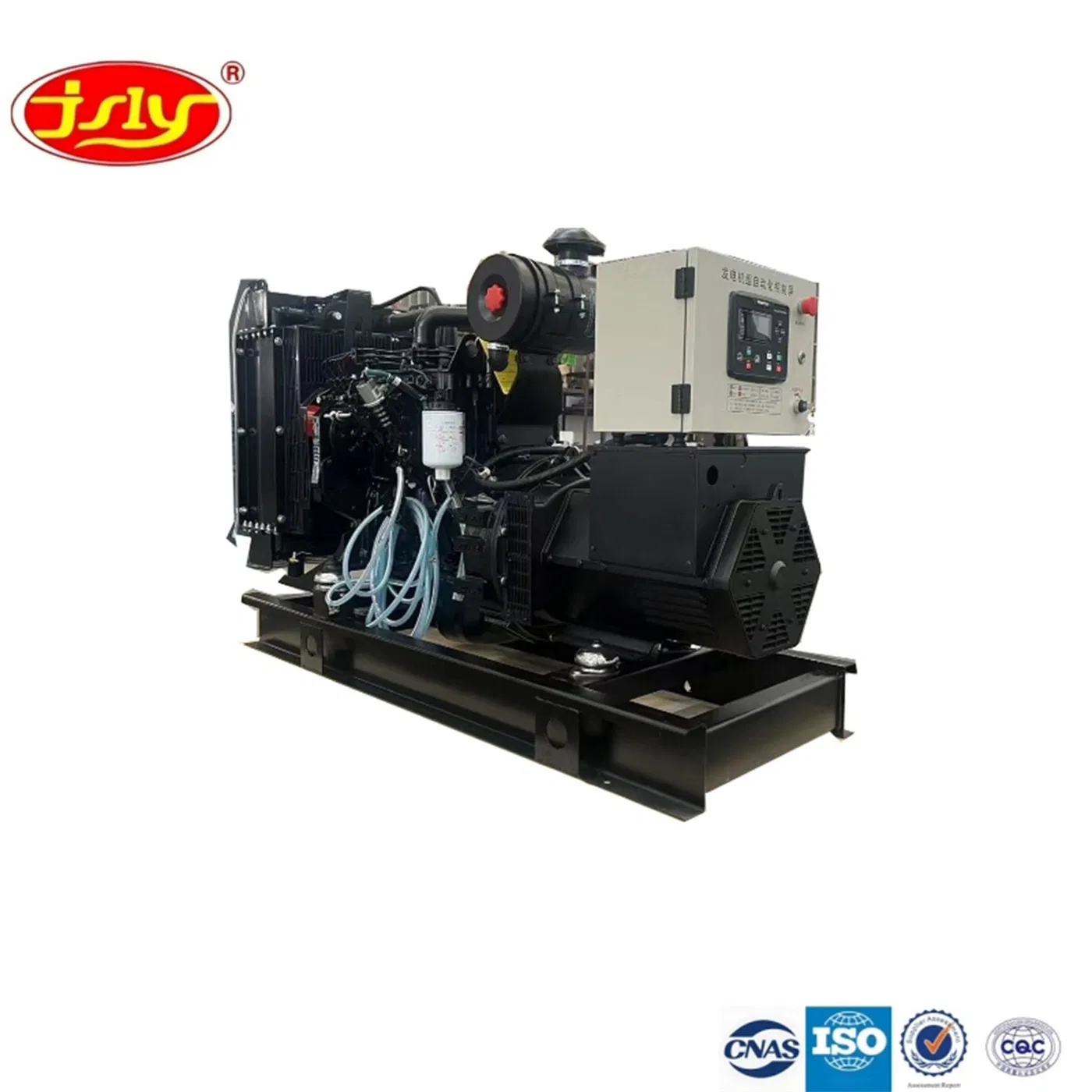

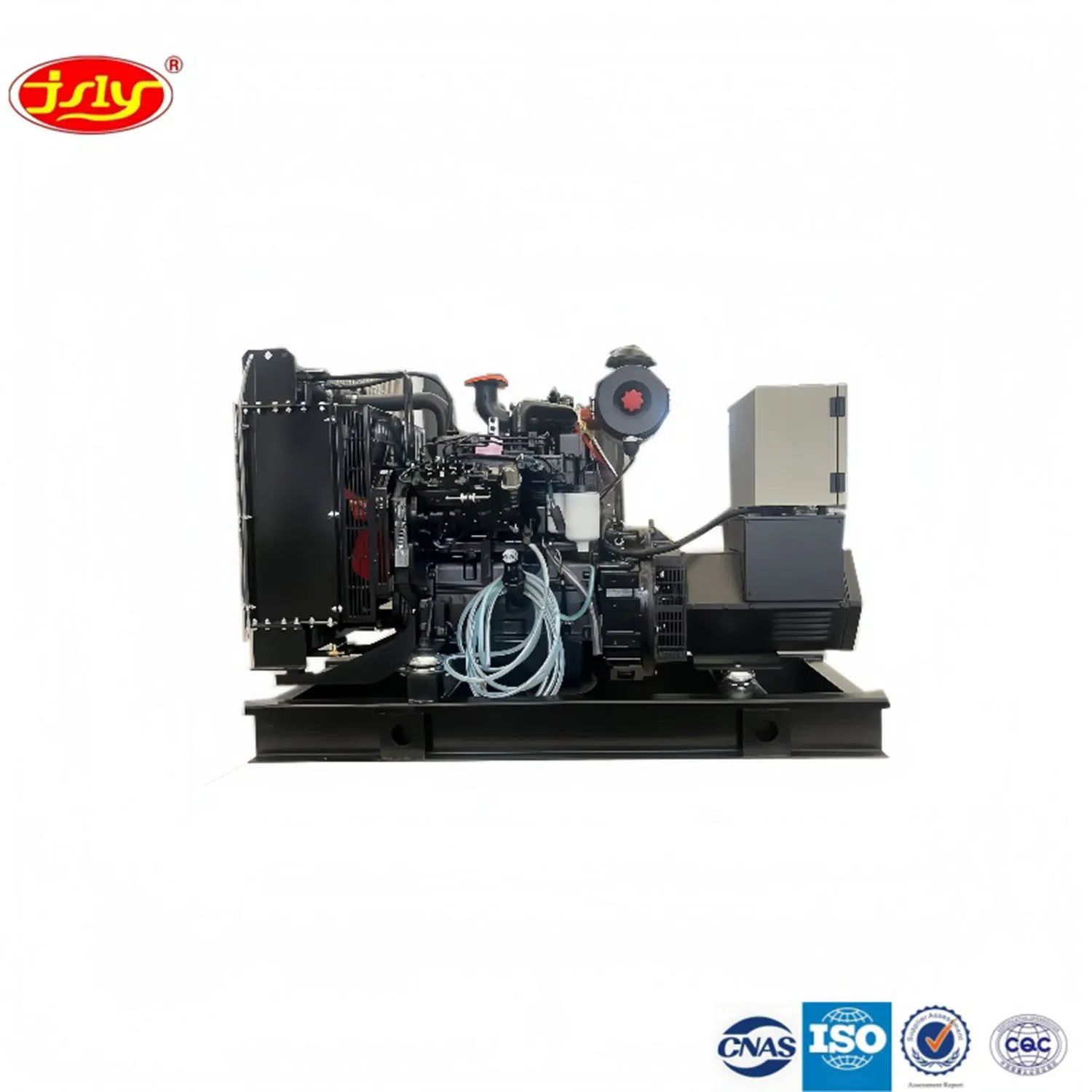

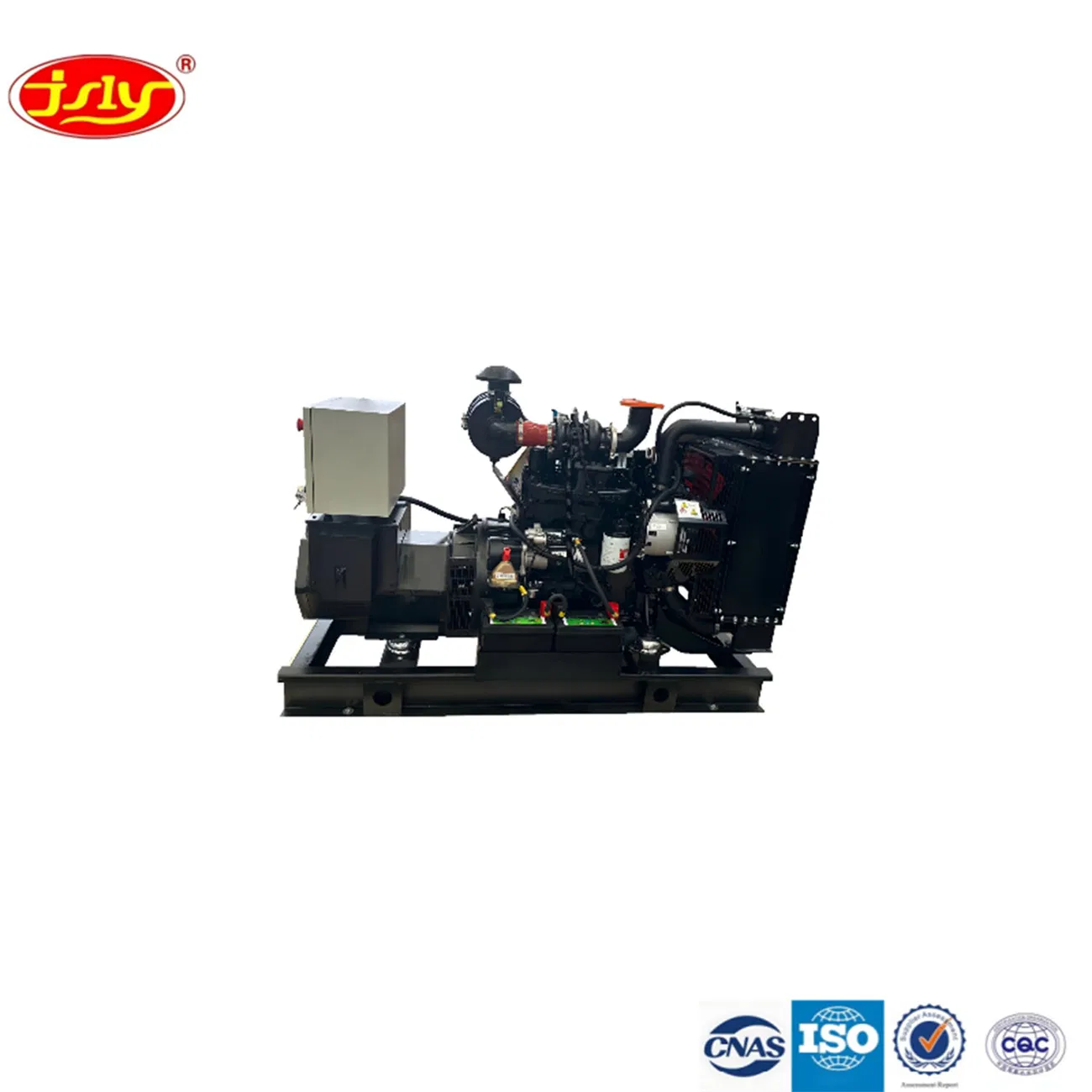

مولد ديزل موثوق به
ملخص المعلومات الأساسية
نموذج رقم.LY-30GF
نوعالذاتي ابتداء مولدات الديزل
طريقة التثبيتثابت
السكتة الدماغيةأربعة السكتة الدماغية
طريقة التبريدمياه التبريد
نوع الانتاجAC ثلاثة المرحلة
سرعة1500rpm, 1800rpm
شروط الاستخداماستخدام الأراضي
استعمالوحدات مشتركة
استخدام الأراضي نوع من وحدةعادي
الوضع الإثارةAC الدوارة المثير
جهد الخرج المقدر400 فولت/230 فولت
التردد50 هرتز/60 هرتز
جهاز العرض العامل بالطاقة0.8
سرعة الدوران1500/1800 دورة في الدقيقة
فئة العزلالفئة h
الحمايةس 22
المرحلةاحادي، وثلاثي الطور خيارات
ابدأ وضع التحكمالبدء الكهربائي
معدل تنظيم الجهد≤± 0.5%
معدل تنظيم الجهد العابر≤ -10%/+15%
معدل تقلب الفولتية (%)≤± 0.5
وقت تثبيت الجهد≤ 1.5sec
تشوه شكل موجة الجهد≤ 8%
وقت تثبيت التردد3 ثوانٍ
معدل تعديل التردد≤± 1%
حزمة النقللوحة مخبزات
تخصيصسي بي كيو روهس إس جي إس
الأصلالصين
رمز النظام المنسق8502110000
القدرة الإنتاجية50، 000 قطعة/سنة
مقدمة عن المنتج
مجموعة مولدات الديزل

مجموعة مولدات الديزل

نظام القدرة القوي: يعتمد المحرك تقنية أساسية، مع مجموعة كبيرة من قدرة الخرج لتلبية احتياجات القدرة الخاصة بسيناريوهات متعددة. فهو يتميز بدقة ضبط عالية للسرعة، والتشغيل السلس، وسعة تحميل فائقة. تحويل فعال للطاقة. توفير ممتاز للوقود، وفجالات التشغيل المنخفضة طويلة الأجل. أداء بيئي فائق، مع تلبية بعض النماذج لمتطلبات بيئية أعلى. تم تصنيع الماكينة بالكامل من مكونات عالية الجودة وتخضع لاختبارات صارمة لضمان التشغيل الطويل الأجل القابل للاستخدام.

الطراز قوة أساسية طاقة الاستعداد موديل المحرك استهلاك الوقود الأبعاد الوزن
كيلووات كيلوفولت أمبير كيلووات كيلوفولت أمبير (لتر/ساعة) (مم) (كجم)
LYW-224224280265331.25MTA11-G2113060*1080*16902200
LYW-231231288.75254317.5NT855-GA142750*980*16002300
LYW-240240300265331.25NTA855-G1142750*1030*16502500
LYW-243243303.75265331.25QSNT-G6142750*980*16002300
LYW-261261326.25291363.75QSNT-G7142760*1000*16002500
LYW-264264330291363.75NTA855-G1A142900*1030*16502500
LYW-282282352.5310387.5MTA11-G3113950*1100*17503100
LYW-283283353.75321401.25NTA855-G2142900*1050*16502700
LYW-284284355321401.25NTA855-G1B142900*1050*16502700
LYW-291291363.75325406.25QSNT-G1142800*1000*16602600
LYW-312312390343428.75NTA855-G2A142900*1050*16502750
LYW-317317396.25351438.75NTA855-G4142900*10690*16802800
LYW-321321401.25358447.5QSNT-G2142950*1100*17102800
LYW-336336420369461.25KTA19-G2143350*1560*19003200
LYW-343343428.75377471.25NTA855-G7143100*1150*17503100
LYW-358358447.5392490QSNT-G3143100*1200*18003100
LYW-377377471.25407508.75NTA855-G7A143100*1150*17503000
LYW-402402502.5447558.75QSK19-G14193500*1350*19003800
LYW-403403503.75448560KTA19-G3193400*1350*20003400
LYW-405405506.25448560QSK19-G15193480*1380*20003770
LYW-400400500448560QSNT-G4X143150*1200*19003200
LYW-445445556.25493616.25QSK19-G16193500*1400*20003800
LYW-448448560504630KTA19-G3A193500*1350*20003500
LYW-448448560504630KTA19-G4193400*1380*20003700
LYW-451451563.75501626.25QSK19-G13193600*1380*21004000
LYW-470470587.5555693.75KTA19-G5193400*1380*21803750
LYW-495495618.75561701.25KTA19-G8E193400*1400*21003800
LYW-503503628.75565706.25QSK19-G12193600*1380*21004100
LYW-505505631.25558697.5QSK19-G17193650*1450*20004100
LYW-520520650570712.5KTA19-G6193400*1380*21803750
LYW-510510637.5575718.75KT19-G8193400*1400*21003800
LYW-520520650592740QSK19-G6193550*1350*21804150
LYW-555555693.75610762.5KTA19-G8A193600*1560*21564050
LYW-550550687.5610762.5KTA19-G6A193400*1550*21504100
LYW-550550687.5610762.5KTA19-G7193400*1550*21504100
LYW-560560700615768.75KT38-G384300*1700*23605100
LYW-564564705624780QSK19-G18193500*1440*21904300
LYW-575575718.75634792.5QSK19-G4193500*1500*24004300
LYW-600600750660825KTA19-G9A193670*1560*21564200
LYW-606606757.5667833.75QSK19-G11193900*1500*22004500
LYW-606606757.5671838.75QSK19-G19194000*1530*22704600
LYW-634634792.5701876.25KTA38-G1384300*1700*23605100
LYW-647647808.75711888.75KTA38-GA384500*180*25007500
LYW-657657821.25730912.5QSK38-G8384350*1800*23507500
LYW-664664830731913.75KTA38-G2384000*1760*24007000
LYW-668668835739923.75QSK19-G20194120*1780*23507100
LYW-705705881.25783978.75QSK38-G7384350*1800*23507500
LYW-711711888.75789986.25KTA38-G2B384120*1780*23507100
الطراز قوة أساسية موديل المحرك استهلاك الوقود الأبعاد الوزن
كيلووات كيلوفولت أمبير (لتر/ساعة) (مم) (كجم)
LYW-181822.54B3.9-G113.91620*700*1120500
LYW-2020254B3.9-G13.91650*720*1200700
LYW-2020254B3.9-G23.91650*720*1200700
LYW-202025QSB3.9-G313.91800*900*1400700
LYW-252531.254B3.9-G123.91650*720*1200700
LYW-303037.54BT3.9-G13.91700*720*1200710
LYW-303037.54BT3.9-G23.91700*720*1200800
LYW-303037.5QSB3.9-G333.91800*900*1400700
LYW-505062.54PTA3.9-G23.91800*750*1200920
LYW-555568.754PTA3.9-G23.91800*750*1200950
LYW-555568.75QSB3.9-G353.91800*900*1400750
LYW-606075QSB3.9-G23.91850*850*1300900
LYW-656581.254PTA3.9-G113.91850*800*13001000
LYW-707087.5QSB3.9-G33.92250*800*13001300
LYW-707087.5QSB3.9-G373.91800*900*14001200
LYW-9090112.56BT5.9-G15.92150*900*14501200
LYW-9090112.56BT5.9-G25.92250*800*13001250
LYW-9090112.54PTA3.9-G133.91850*800*13001000
LYW-1001001254PTA3.9-G33.91850*800*13001000
LYW-1001001256BT5.9-G25.92250*800*13001250
LYW-100100125QSB5.9-G25.92300*800*13001300
LYW-100100125QSB3.9-G393.91800*900*14001200
LYW-1001001256BTA5.9-G25.92300*800*13001300
LYW-100100125QSB5.9-G305.92350*900*14001300
LYW-1201201506PTA5.9-G25.92300*830*13001350
LYW-120120150QSB5.9-G35.92350*900*14001300
LYW-120120150QSB5.9--G315.92390*900*14001300
LYW-130130162.56PTA5.9-G125.92300*850*14001350
LYW-130130162.5QSB6.7-G36.72300*850*13001400
LYW-150150187.5QSB5.9-G335.92390*900*14001300
LYW-150150187.56CTA8.3-G18.32450*850*18001450
LYW-150150187.56CTA8.3-G28.32400*970*15001600
LYW-150150187.5QSB6.7-G46.72400*850*13501450
LYW-150150187.5QSB6.7-G326.72450*950*14301720
LYW-1601602006CTA8.3-G28.32400*970*15001900
LYW-180180225QSL8.9-G28.92550*1050*15002430
LYW-180180225QSB6.7-G316.72500*1000*15601900
LYW-2002002506CTA8.3-G98.32650*1000*16122400
LYW-2002002506LTA8.9-G28.92650*1080*17002000
LYW-200200250QSL8.9-G38.92550*1050*15002430
LYW-2002002506LTA8.9-G38.92650*1080*17002000
LYW-200200250QSL8.9-G48.92550*1050*15002450
LYW-200200250QSL8.9-G348.92550*1050*15002530
LYW-250250312.56LTA9.5-G39.52750*1080*17002300
LYW-250250312.5QSL8.9-G338.92550*1050*15002550
LYW-270270337.56LTA9.5-G19.52750*1080*17002550
LYW-280280350QSL8.9-G308.92550*1050*15002580
LYW-300300375QSZ13-G6133270*1140*18003330
Notes / ملاحظات هامة
  • Use 0 #~-30 # light diesel and specify the use of 15W-40CD and above grade engine oil (or Choose according to the specific local environment).
  • The starting temperature is above+5 ℃; When equipped with a water oil temperature heating device, the starting temperature is -15 ℃; When the unit is used below 0 ℃, low-temperature starting measures such as antifreeze should be taken.
  • Noise coefficient of the unit at a distance of 10 meters: ≤ 85-95db (A), in compliance with international standards.
  • We provide diesel generator sets ranging from 8KW to 3000KW.
  • The generator sets produced meet the standards of AC generator sets driven by reciprocating internal combustion engines.
  • Pressure regulation mode: automatic or manual.
  • Precautions for users in cold regions: Adjust the engine oil, diesel, and coolant appropriately according to temperature changes to ensure the normal operation of the unit.
  • With the continuous updates of the product, if there are any changes or modifications to the sample parameters, the random file shall prevail. The right of final interpretation is reserved without further notice.
Our Advantages / مميزاتنا
  • Product quality is guaranteed: From production assembly to testing and debugging before leaving the factory, we strictly control every aspect of production to ensure that every machine is of high quality.
  • Service is in place: Comprehensive after-sales service system, providing professional technical support and maintenance services to customers.
  • Wide range of applications: Adapt to various power generation equipment, including mobile, silent, and trailer type, providing customers with more choices.
  • Cost-effective: Can meet the needs of different customers and save costs. (The pictures are for reference only, please refer to the actual product).

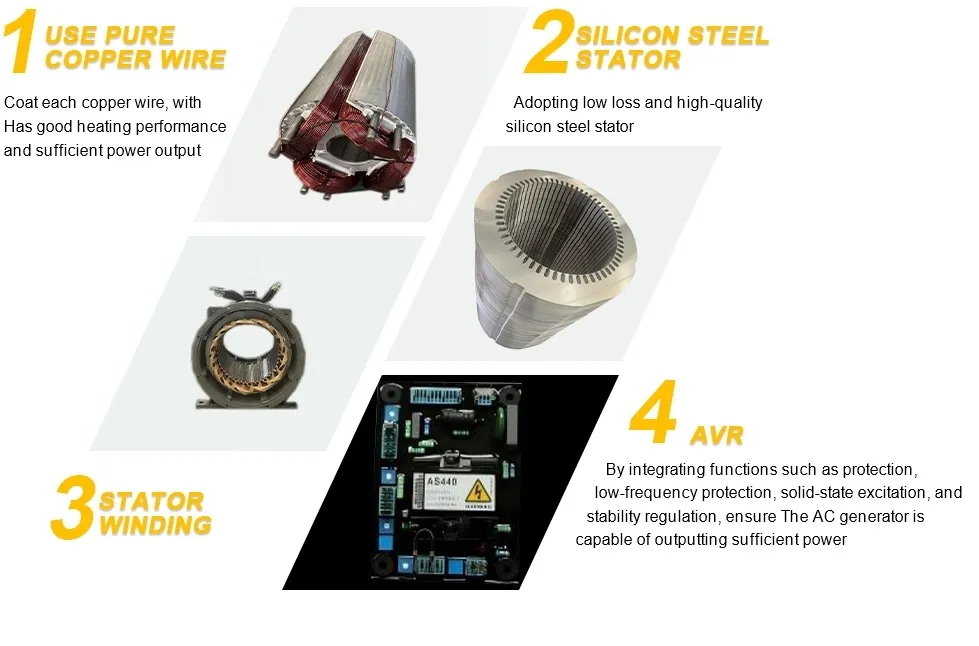

Water-cooled diesel generators

Water-cooled diesel generators - high performance and stability

Our water-cooled diesel generators use top-tier engine, alternator, and controller brands to ensure superior power output and stability. Its advanced water-cooling system effectively regulates temperature, ensuring efficient and reliable operation even under high temperature or continuous work conditions. Equipped with an intelligent control system, it supports intelligent monitoring and automatic start-stop functions, providing seamless and user-friendly operation. Our generators are precision engineered, meet international standards, and have excellent durability and low maintenance costs. Whether it's industrial, construction, mining, or backup power needs, our diesel generators are your trusted energy solution!

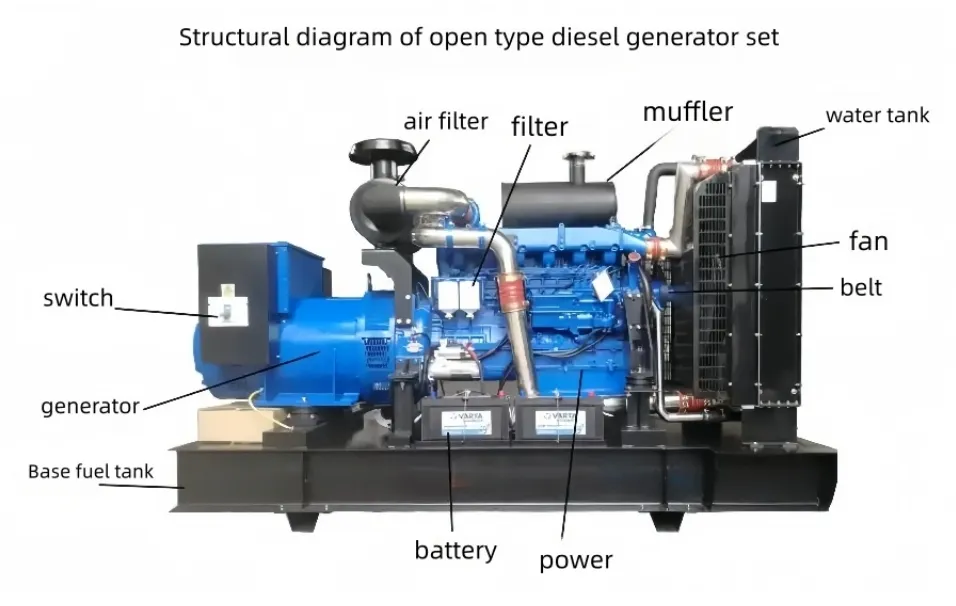

Application scenarios of generator sets

Application scenarios of generator sets

Nowadays, our products are widely used in many fields. They are widely used in schools, homes, engineering construction, as well as hospitals and consumer industries. These generators can not only serve as regular power sources for daily operations, but also as reliable emergency backup power sources. We have multiple models of self-made generators to meet the different needs of different enterprises. We ensure product quality through meticulous craftsmanship. Moreover, we have established a comprehensive after-sales service system, providing all-round support for installation, debugging, and maintenance, allowing users to enjoy a worry free experience.

Generator Application

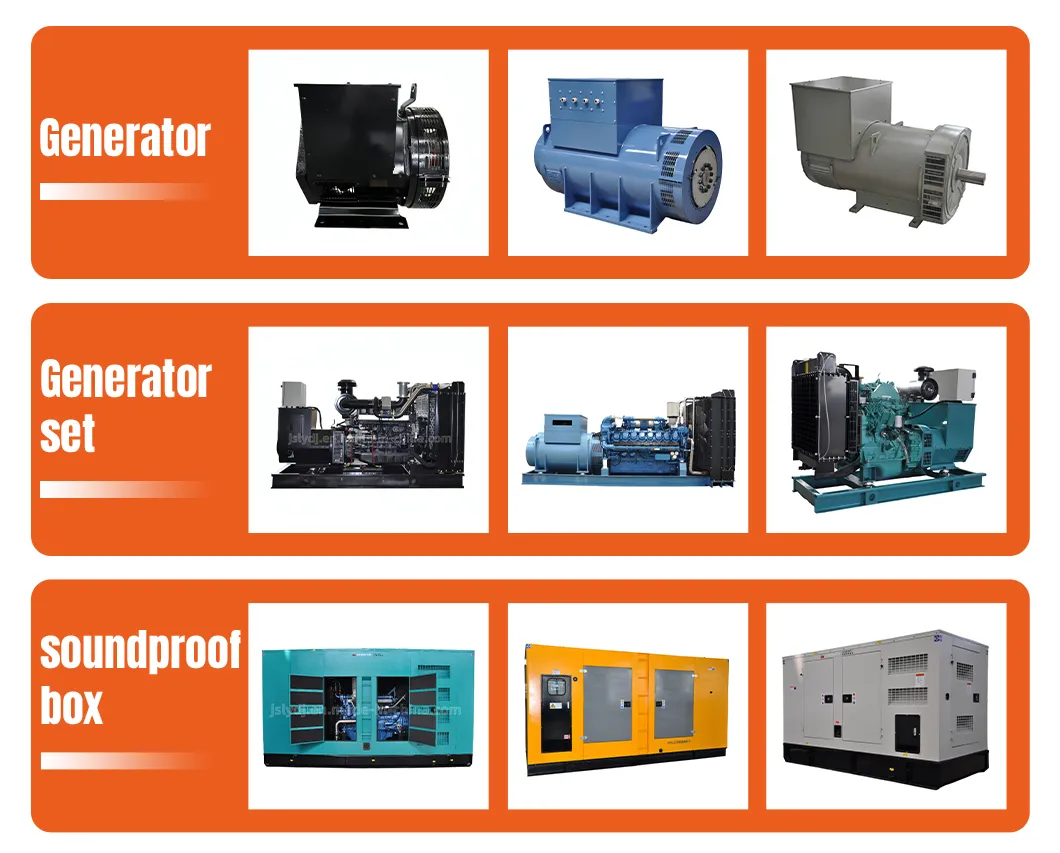

المنتج الرئيسي
المنتج الرئيسي

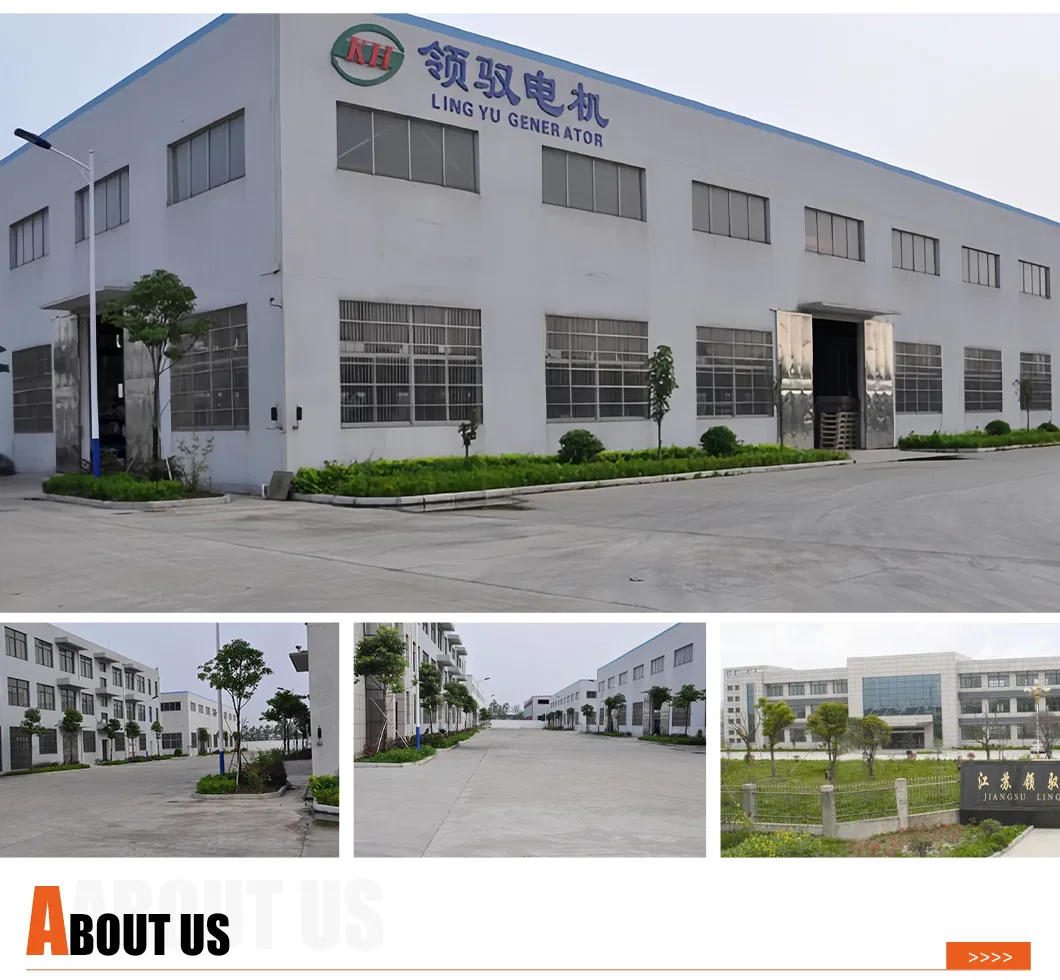

ملف تعريف الشركة
Company Profile

Our company integrates scientific research, production, and sales of diesel generator sets, including ordinary, automated, multi machine grid connected, low-noise, container, mobile power station, fully automatic unmanned, and remote centralized control types. The power part uses domestic and imported engines according to customer needs, paired with high-quality pure copper brushless generators, to provide power solutions for various scenarios. The power coverage of the generator set is 10-3000KW, with a voltage of 220V-10500V.

We always adhere to high-quality requirements, combined with advanced process technology and testing methods, following the principle of seeking survival through price and development through quality. We value contracts, keep promises, and uphold integrity, striving for excellence and quality. Our products are widely used in mining, breeding, communication, ports, highways, railway construction, hotels, airports, and other places. As high-quality emergency power supplies, we have won many returning customers and gained the trust and support of our customers.

We are an excellent manufacturer with a total area of nearly 40000 square meters. The company has a modern unit testing center and a high-quality production equipment chain, forming its own characteristics with sound and perfect services.

For many years, we have been continuously promoting the spirit of "lean manufacturing, craftsmanship and quality", investing in innovation, improving the level of intelligent manufacturing, and ensuring that every product is stable and reassuring for customers. Our business philosophy is "honesty and trustworthiness, practical work for win-win". We promise to become your most trusted partner with stable device performance and timely after-sales service.

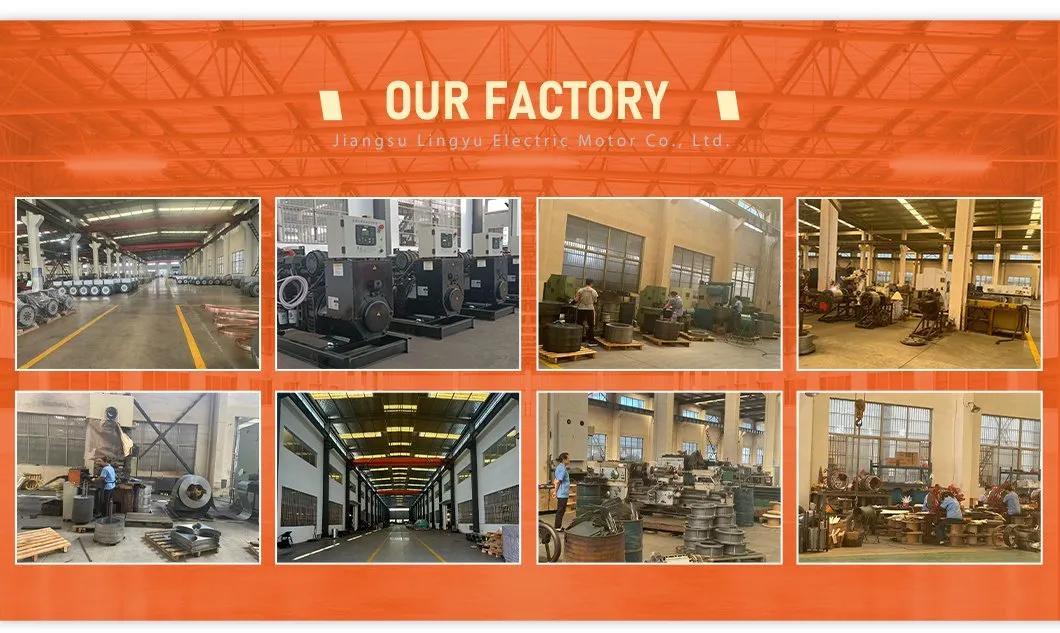

ميزة الشركة
شهادة
شهادة
معرض
معرض
Our Services / خدماتنا
Our Services

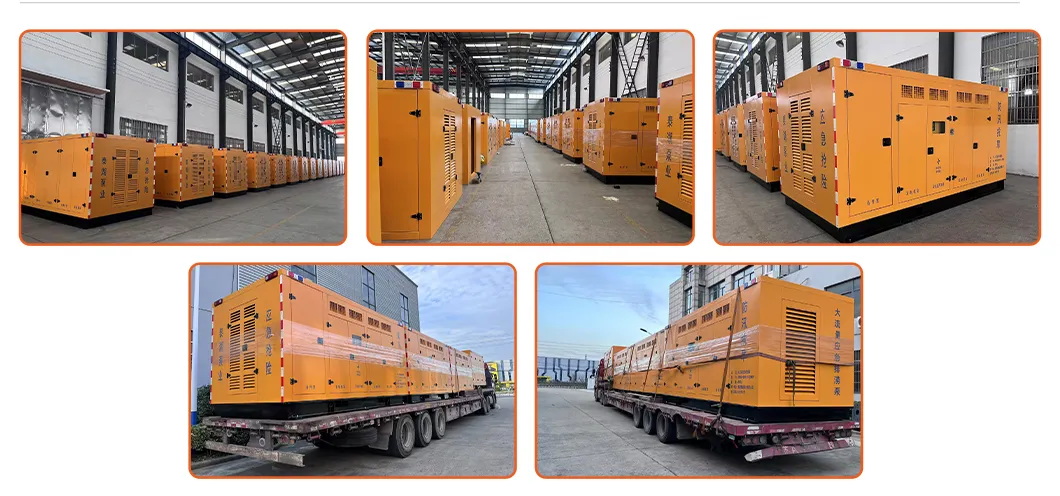

Package And Shipping / التعبئة والتغليف والشحن
Package And Shipping
الأسئلة الشائعة (FAQ)
س1: ما هي الخدمات التي تقدمونها؟
ج1: نحن نقدم خدمات استشارية مجانية، دعمًا فنيًا متكاملًا، ومشورة متخصصة، بالإضافة إلى خدمات المتابعة والصيانة مدى الحياة لجميع مجموعات مولدات الديزل الخاصة بنا.
س2: ما هي طرق الدفع المتاحة لديكم؟
ج2: نحن نقبل الدفع عبر التحويل البنكي (T/T)، والاعتماد المستندي (L/C)، وغيرها من الطرق المناسبة. الدفع القياسي يتطلب 30% كدفعة مقدمة، و70% المتبقية تدفع بالكامل قبل الشحن. وفي الحالات الخاصة، نقوم بإجراء التعديلات المناسبة.
س3: هل يمكن تخصيص مولدات الديزل حسب الطلب؟
ج3: نعم، يمكن تخصيص المولدات بالكامل وفقًا لمتطلبات العملاء التفصيلية. يمكننا توفير مولدات مخصصة لأعمال التأجير، الاستخدام المنزلي، المشاريع الصناعية، محطات الطاقة، وغيرها.
س4: ما هو مستوى الضوضاء الناتج عن هذه المولدات؟
ج4: يبلغ معامل الضوضاء للوحدة على مسافة 10 أمتار أقل من أو يساوي 85 إلى 95 ديسيبل (A)، وهو متوافق تمامًا مع المعايير الدولية المعتمدة.
س5: ما هي درجة الحرارة المناسبة لتشغيل المولدات؟
ج5: درجة حرارة بدء التشغيل العادية هي أعلى من +5 درجات مئوية. وعند تزويد المولد بجهاز تسخين حرارة الماء والزيت، يمكن بدء التشغيل في درجات حرارة منخفضة تصل إلى -15 درجة مئوية.
س6: ما هي مواصفات وقود الديزل وزيت المحرك الموصى بها؟
ج6: نوصي باستخدام الديزل الخفيف من فئة 0# إلى -30#، واستخدام زيت محرك من فئة 15W-40CD أو أعلى، وفقًا لمتطلبات البيئة المحلية الخاصة بالتشغيل.
